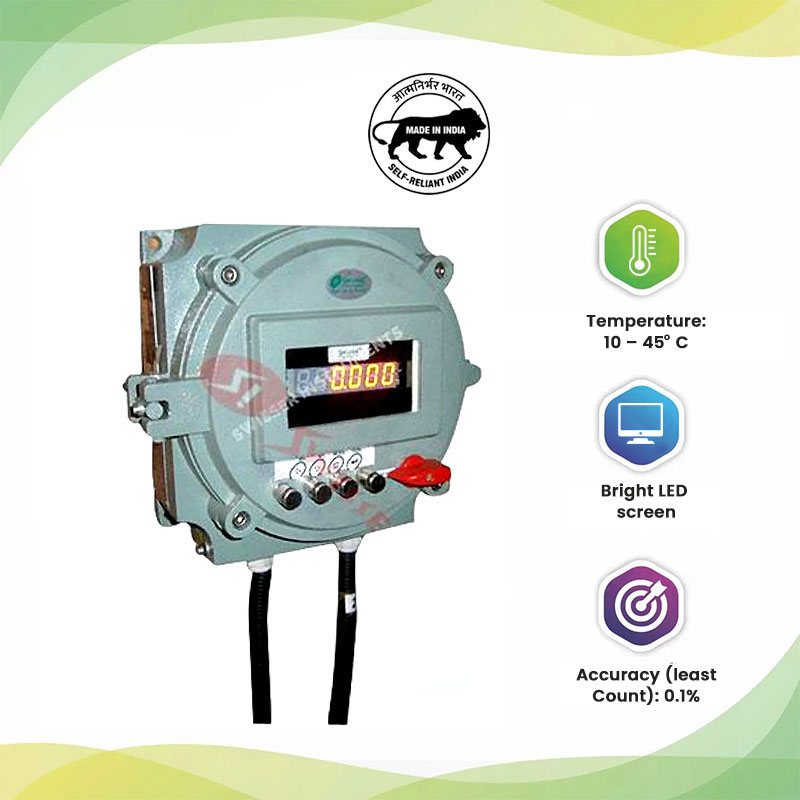

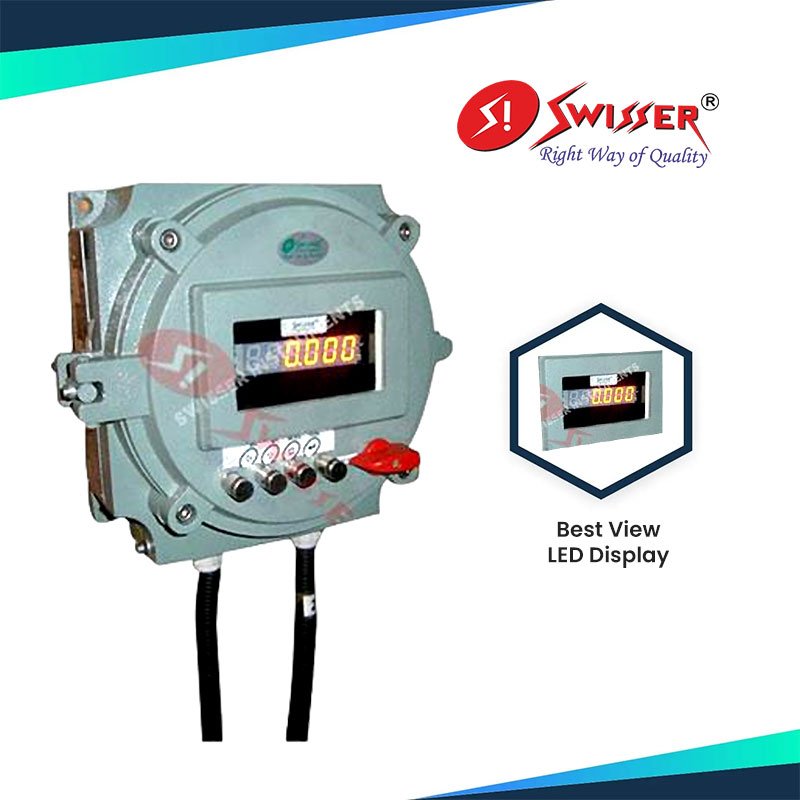

Flameproof indicator enclosed in robust enclosures for different gas groups, are excellent system for hazardous industrial regions. Operators can easily check the process values through hard glass of the flameproof screen and program parameters on the indicators with push buttons on the flameproof enclosure.

The system has a 2 wire loop powered LED indicator, it can be mounted on a two inch pipe and is virtually impregnable to dust and water. It doesn’t need own power supply. The microcontroller technology linearizes the input for higher accuracy. The indicator is software calibrated and user programmable to perform linear or square root function on the process value. It has a panel mounted version without a security enclosure and a flameproof body that can withstand temporary flooding.

Flameproof Indicator Features

  • High speed A/D conversion
  • Full digital calibration through keyboard
  • 3 point linearity correction
  • Optional battery backup
  • Bright LED screen

Flameproof Indicator Specifications

  • Current input: 4 to 20 mA
  • Power requirement: 90 to 250V, 50 – 60 Hz, 10 Watt
  • Accuracy: 0.1% span
  • Screen : 4 digit LED display
  • Linear and square root function
  • User programmable
  • Software calibration: NO trimpots
  • Loop voltage drop below 5 volts
  • Operation temperature: 10 – 45oC

Market Area

Delhi, Hyderabad, Kolkata, Mumbai, Uttar Pradesh, Gujarat, Madhya Pradesh, Maharashtra, Rajasthan, Punjab, Tamil Nadu, West Bengal, Uttarakhand, Punjab
