Heavy Duty Platform Weighing Scale Machine Manufacturers Mumbai

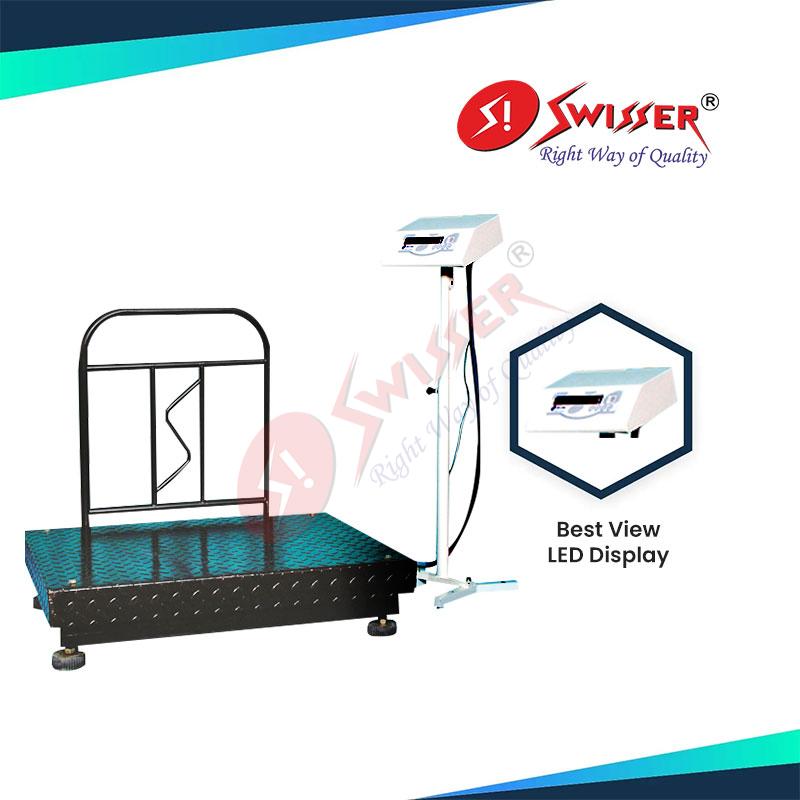

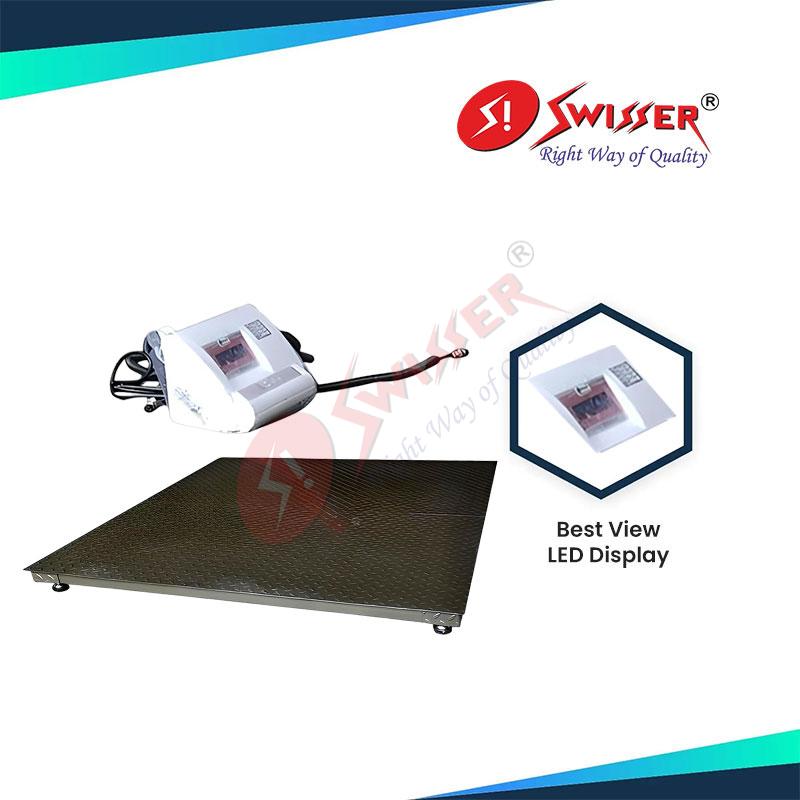

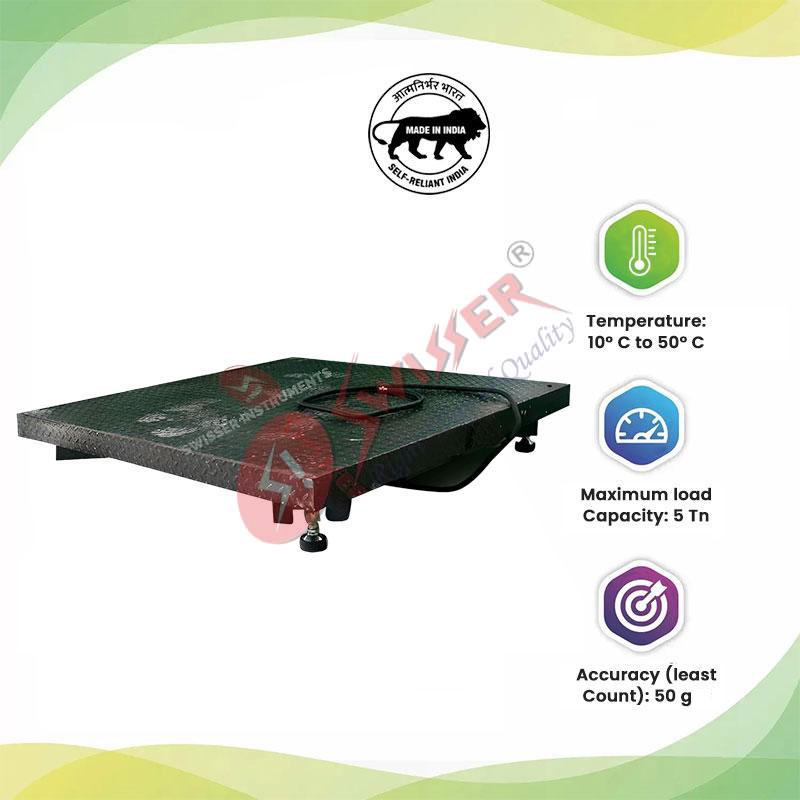

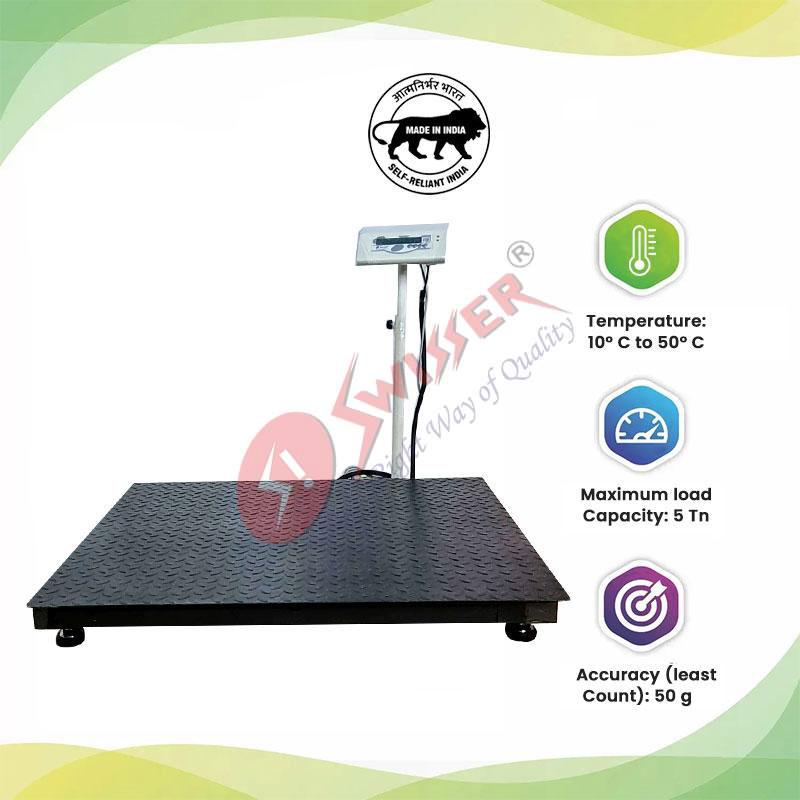

Platform weighing scale machine is made from Stainless steel for durable construction and high efficiency. It is fit for industrial and business applications. The machine features high resolution load cell with overload stoppers and transport protection. It is available in single load cell and four load cell design. Made from high grade steel, the scale conforms to the industrial standards. It is widely appreciated for longer service life and accurate readings.
We supply excellent quality Platform weighing scale with suitable and sturdy detachable bracket to fit the indicator on the pole. It is lightweight, strong and long lasting machine with technically advanced platform for use in diverse application fields.

Swisser Instruments Pvt Ltd Manufacture two different category of Platform Series. As Follows:



 Platform Weighing Scale Machine Manufacturers Andhra Pradesh Heavy Duty Platform Weighing Scale Machine Manufacturers Mumbai Floor Weighing Scale Machine Manufacturers Delhi
Platform Scale Heavy duty Platform Scale  Floor Scale

Platform Weighing Scale Machine Technical Data

  • Designed On Advanced Micro Controller Technology
  • Power 230V AC + 10% 50 HZ
  • Optional – 6V / 4 AH Rechargeable Dry Battery
  • Temperature Range – 10° C to 50° C
  • 12.5 MM LED Display
  • 100,000 Internal Resolution
  • Sensor – High Quality Load Cell
  • Safe Overload Up to 200% of Rated Capacity
  • Ultimate Overload Up to 300% of Rated Capacity

PLAT FORM SERIES (Multifunction)

Model No Capacity  Accuracy  Pan Size
SWIP 202  20 Kg  2 gm 400 MM X 500 MM
SWIP 305  30 Kg  5 gm 400 MM X 500 MM
SWIP 505  50 Kg  5 gm 400 MM X 500 MM
SWIP 502  50 Kg  2 gm 400 MM X 500 MM
SWIP 605  60 Kg  5 gm 400 MM X 500 MM
SWIP 610  60 Kg  10 gm 400 MM X 500 MM
SWIPD 20/50  20/50 Kg  2/5 gm 400 MM X 500 MM
SWIPD 30/70  30/70 Kg  5/10 gm 400 MM X 500 MM
SWIPD 50/100  50/100 Kg 5/10 gm 400 MM X 500 MM
As Per Requirement
SWIP 100 100kg 10 gm  600 MM X 600 MM
SWIP200 200kg 20gm 600 MM X 600 MM
SWIP 300 300 kg 50 gm 600 MM X 600 MM
SWIP 500 500 kg 50 gm 600 MM X 600 MM
SWIP 100/200 100/200 kg 10/20 gm 600 MM X 600 MM
SWIP 200/500 200/500 kg 20/50 gm 600 MM X 600 MM
SWIP 100/300 100/300 kg 10/50 gm 600 MM X 600 MM
` As Per Requirement

Platform Weighing Scale Machine Optional Attributes

  • Inbuilt Battery Back Up
  • Flame Proof Enclosure
  • Two Side Back Rail
  • RS 232 ComputerInterface Port for Computer – Printer
  • 2 To 20 mv Output / 0 to 5 V output
  • Wire lessExtra Display

Platform Weighing Scale Machine Specifications

  • Capacity: 80 kg to 300 kg
  • Accuracy: 10 gm – 50 gm
  • Plate size: 400 mm x 400 mm to 600 mm x 600 mm
  • Power supply : 190 V – 270 AC, 50 HZ
  • Power use: 5 W
  • Recharge battery: 6 V/ 4.5 Ah
  • Operation temperature: 10oC to 50oC
  • Internal resolution: 100000
  • Overload protection: 200%
Platform Weighing Scale Machine Application
  • Sweet shops
  • Bakeries
  • Provision stores
  • Hotels
  • Engineering sector
  • Ginning and grain industry
  • Laboratory
  • Chemical industry
  • Pharma industry
Platform Weighing Scale Machine Features
  • Inbuilt battery and auto charging feature
  • Automatic voltage regulator
  • Durable mechanism with overload proteciton

Market Area

Delhi, Hyderabad, Kolkata, Mumbai, Uttar Pradesh, Gujarat, Madhya Pradesh, Maharashtra, Rajasthan, Punjab, Tamil Nadu, West Bengal, Uttarakhand, Punjab
